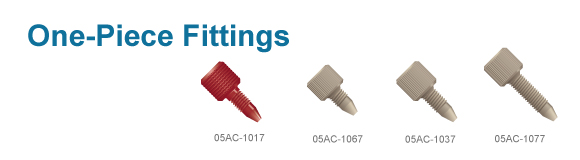

Upchurch One-Piece Fittings |
|
• |
Upchurch Scientific®'s original One-Piece Fingertight Fittings have 10-32 threads and are designed to be used with 1/16” OD tubing, |
• |
Works with all 1/16” OD Tubing and female 10-32 ports |
• |
Finger tight without tools |
• |
PEEK and Kel-F are chemically inert and biocompatible |
• |
PEEK, pressure rated to 6,000 psi |
• |
Kel-F, pressure rated to 4,000 psi |
|
SieLC One-Piece Fittings |
• |
Aluminum construction is price savings. |
• |
Strong anodized aluminum thread allows many more use-cycles |
• |
Finger-tight installation. PEEK tip installs permanently and cannot be lost during installation |
• |
Pressure rating over 5,000 psi, suitable for ultra-fast chromatography applications |
• |
Several color options, including red, black, blue, gold, and gray. |
• |
Break-resistant — when a normal column is
accidentally dropped with the fitting in, the PEEK fitting usually breaks, leaving hard-to-remove pieces inside the column. Aluminum can bend — but it won't break, and thus it can be simply replaced with another fitting, saving the expensive column. |
|
| |
SieLC UHP One-Piece Fittings |
• |
Strong stainless steel thread allows many more usecycles than a one-piece PEEK design |
• |
Finger-tight installation. PEEK tip installs permanently and cannot be lost. Pressure rating up to 14,000psi |
• |
One-size-fits-most applications, including columns, valves, and instrument ports. |
• |
Break-resistant |
• |
Improves heat transfer |
• |
Special capillary tube gripping mechanism allows strong holding effect of the tube, even with very gentle tightening forces. Patent-pending design. |
